直線導軌絲杠的性能特點和優點
來源:http://www.idczc.com/ 日期:2022-02-10 發布人:
從傳統的的生產車間職工逐漸詮釋成目前的全自動水流生產制造,加工工藝也獲得了大大的提高。質量上去了,生產廠家的訂單信息當然就增加了。據統計數控設備行業中,運用智能化系統比較顯著。其占有了行為主體的影響力特性,而且使用了一部分的直線導軌做為傳動系統零部件,那么其直線導軌特性特性及優勢,直線導軌中間的交換?
From the traditional production workshop staff gradually interpreted as the current full-automatic water flow production and manufacturing, the processing technology has also been greatly improved. When the quality goes up, the order information of the manufacturer will certainly increase. According to statistics, the use of intelligent system is more significant in the NC equipment industry. It occupies the influence characteristics of the behavior subject, and uses part of the linear guide rail as the parts of the transmission system. Then its linear guide rail characteristics and advantages, the exchange between the linear guide rails?

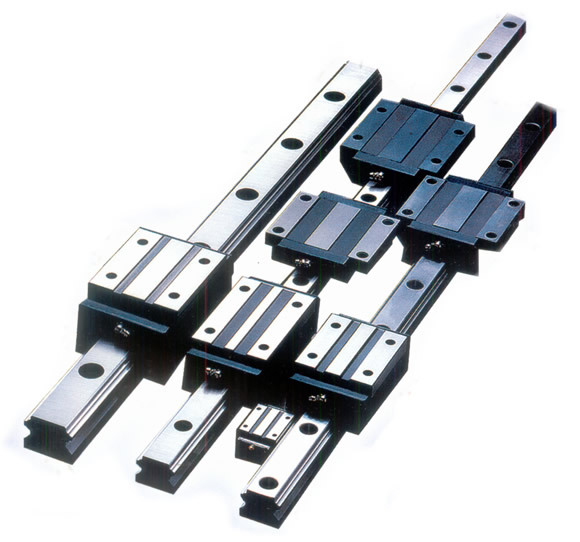

一、自潤式線性導軌特性
1、 Characteristics of self-lubricating linear guide rail
1、內建式免進氣系統
1. Built in air free system
2、高精度、低摩擦阻力
2. High precision and low friction resistance
3、四方位等負載設計方案
3. Square position equal load design scheme
4、高挪動速率、低噪聲
4. High moving speed and low noise
5、運作暢順新式滾珠循環系統方法
5. New ball circulation system and method for smooth operation
6、全密閉式骨架密封
6. Fully enclosed skeleton seal
7、高剛度四排珠45夾角觸碰
7. High stiffness four row beads 45 included angle touch
8、可交換式設計方案
8. Exchangeable design scheme
9、全球規范規格型號規格
9. Global specification model specification
10、產品
10. Energy saving and environmental protection products


二、四大優勢
2、 Four advantages
1、免維護保養、低檢修、不用潤化管道系統軟件與機器設備。
1. Maintenance free, low maintenance, no need to moisten the pipeline system software and machinery and equipment.
2、使用期限較長,長期性全自動保護路軌表層潤滑脂膜維護。
2. Long service life, long-term automatic protection, and maintenance of lubricating grease film on rail surface.
3、大幅度節約潤滑脂成本費。
3. Greatly save the cost of grease.
4、便于保持設備清理,無廢成品油外露環境污染之處。
4. It is convenient to keep the equipment clean, and there is no exposed environmental pollution of waste product oil.
三、中間的交換
3、 Intermediate exchange
1、檢查組成高度是不是同樣
1. Check whether the composition height is the same
2、檢查組合軸承組成長短是不是與旁物產生干預
2. Check whether the composition length of the combined bearing interferes with the surrounding objects
3、檢查滑塊金屬材料本身長短是不是貼近
3. Check whether the length of the metal material of the sliding block is close to each other
4、檢查滑塊上的孔眼及孔位是不是同樣
4. Check whether the hole and hole position on the sliding block are the same
5、檢查滑軌的總寬是不是同樣
5. Check whether the overall width of the slide rail is the same
6、檢查滑軌的孔位是不是同樣
6. Check whether the hole position of the slide rail is the same
7、檢查動的孔大小是不是可以應用同樣的固定不動螺釘
7. Check whether the same fixed screw can be applied to the size of the moving hole
8、滑軌與端距假如不對稱,在購買時請盡量表明。
8. If the distance between the slide rail and the end is asymmetric, please try to indicate it when purchasing.
